The High-Torque vacuum filler for dry products

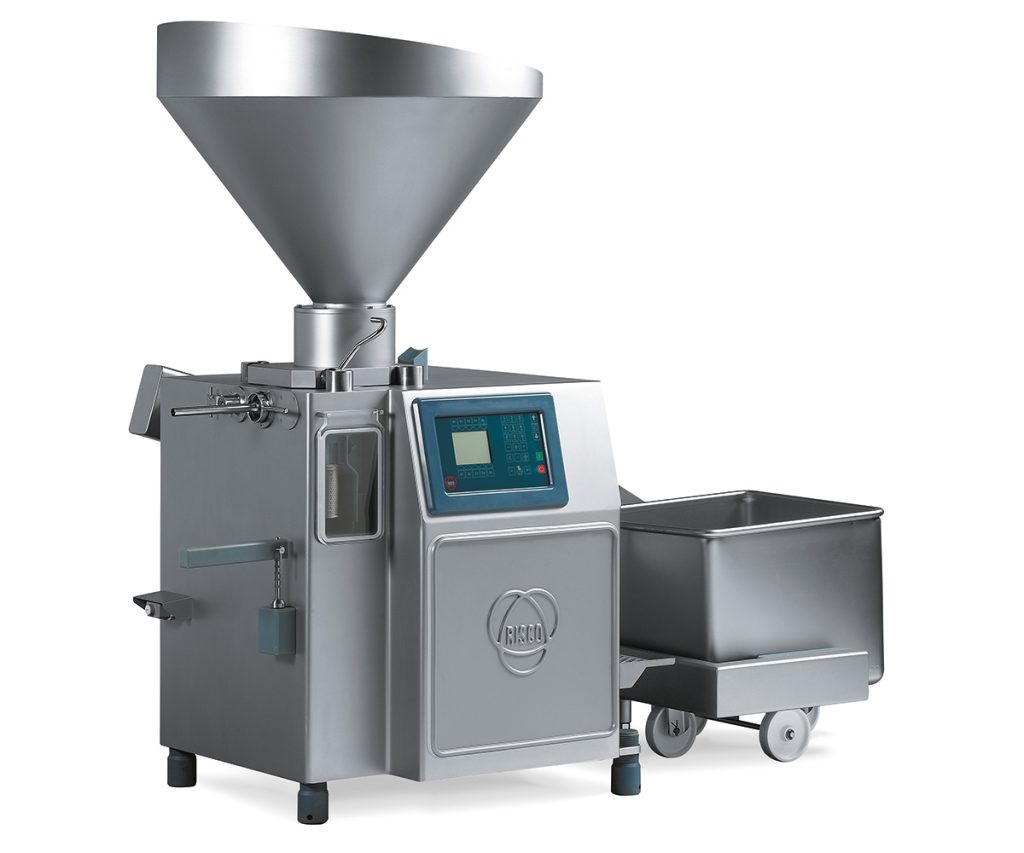

The continuous vacuum filler RS 301, designed to fill viscous and very dry products, is suitable for medium and high production volumes. The RS 301 sausage vacuum filler can achieve high filling pressures, ensuring, nevertheless, a delicate process. The concentric vanes rotor allows a proper and reliable operation as well as an extraordinary precision in the portioning, even with stiff products and high pressures. With the Risco computer of the latest generation, you can monitor all the stuffing parameters quickly and immediately, allowing the operator to adjust the programs daily without losing time. The model RS 301 is equipped with a hopper capacity of 280 litres. In addition it is possible to connect the filler to any kind of automatic clipping machine and to other Risco accessories.
Main Features
- Increased filling pressure with more powerful motors
- Feeding of the filling system synchronized with the production speed
- Excellent portioning precision
- Complete filling of the chambers – Risco “Long Life” – filling system
- Homogeneous distribution of the product
- Friendly-user central computer
- Massive construction
Technical Features
- Production per hour: 4.000 Kg / h
- Portioning speed: 680 pcs / min
- Filling pressure: 60 bar max
- Installed power: 8 kW
- Hopper capacity: 280 liters
